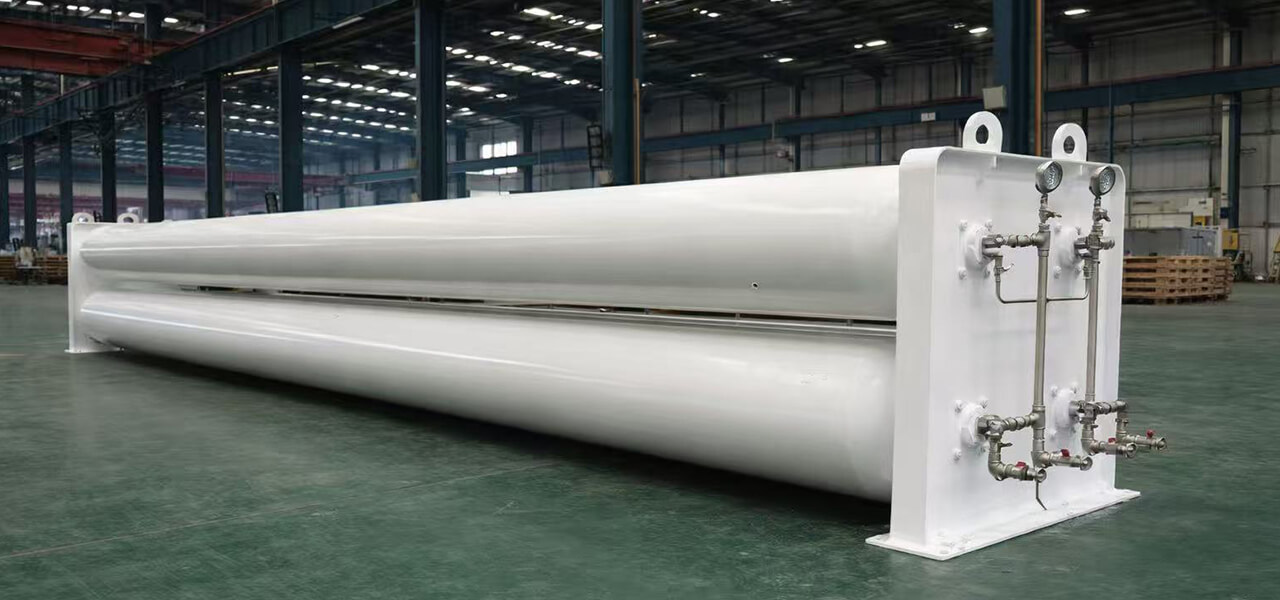

CNG Jumbo Cylinder Cascade

1. Product Overview

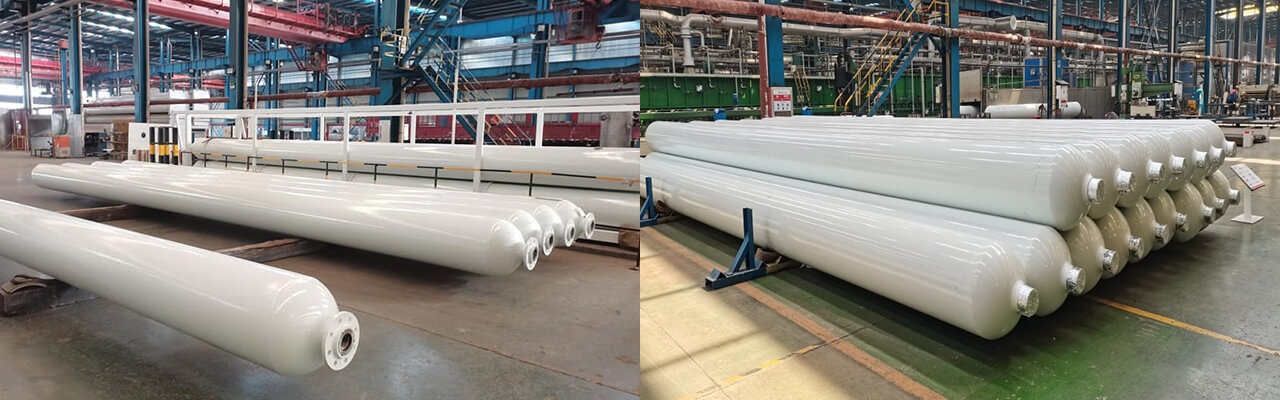

Jumbo Cylinder Cascade is a high-pressure gas storage system composed of multiple jumbo cylinders connected in parallel.

It can store and transport CNG, Hydrogen, Helium, Nitrogen; The jumbo cylinders are designed, manufactured, inspected and accepted according to: ISO11120 Cylinder-design, structure and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L.

2. Key Advantages

• Modular configuration allowing flexible capacity selection

• High-pressure storage suitable for cascade loading and unloading operations

• Compatible with CNG compression, transportation, and pressure regulating systems

• Robust structural design for safe and long-term operation

• Widely used in CNG mother stations, daughter stations, and industrial gas supply applications

3.Technical Parameters

Working pressure: 250bar

Material: 4130X

Cylinder capacity: 1050L, 2160L, 2180L, 2210L

Standard: ISO11120

Cylinder cascade model: 1 tube cascade, 2 tubes cascade, 3 tubes cascade, 4 tubes cascade, 6 tubes cascade, 10 tubes cascade, 11 tubes cascade.

Cylinder Model (Working Pressure 250Bar)

Cylinder Cascade Model (Working Pressure 250Bar)
