Storage Tank For LOX / LIN / LAR/LCO₂
Product Overview
The Storage Tank for LOX (Liquid Oxygen), LIN (Liquid Nitrogen), LAR (Liquid Argon), and LCO₂ (Liquid Carbon Dioxide) is a cryogenic pressure vessel designed for the safe storage of industrial and medical gases in liquid form. The tank adopts a double-wall, vacuum-insulated structure to minimize heat ingress and reduce product losses. It is widely used in air separation units (ASU), gas filling stations, industrial gas supply systems, and downstream processing facilities.
Key Features
• Double-wall design with high-vacuum and multi-layer insulation for excellent thermal performance
• Low boil-off rate ensuring efficient and economical cryogenic liquid storage
• Compatible with LOX, LIN, LAR, and LCO₂ service conditions
• Designed and manufactured in accordance with international pressure vessel standards
• Equipped with complete safety systems, including relief valves, burst discs, and level/pressure instrumentation
• Suitable for vertical or horizontal installation depending on site requirements

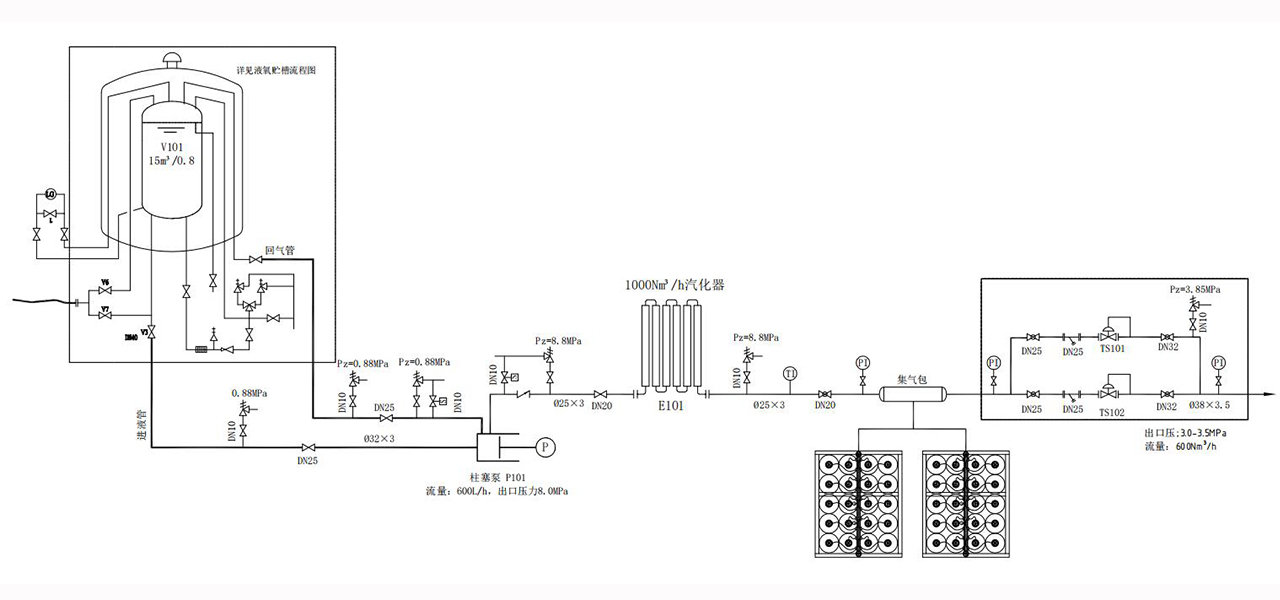

• Easy integration with vaporizers, filling systems, and downstream gas supply equipment
Technical Parameters for LOX / LIN / LAR
| Tank Volume(M3) | Work Pressure(Mpa) | Dimension(mm) | Full Load Weight LOX(KG) | Full Load Weight LIN(KG) | Full Load Weight LAr(KG) |
| 3.5 | 0.8 | 2112x3665 | 6440 | 5285 | 7385 |
| 3.5 | 1.6 | 2112x3665 | 6780 | 5625 | 7725 |
| 5 | 0.8 | 2112X4550 | 9200 | 7550 | 10550 |
| 5 | 1.6 | 2112X4550 | 9685 | 8035 | 11035 |
| 10 | 0.8 | 2316x7165 | 16840 | 13540 | 19540 |
| 10 | 1.6 | 2316x7165 | 17720 | 14420 | 20420 |
| 15 | 0.8 | 2616x6490 | 24270 | 19320 | 28320 |
| 15 | 1.6 | 2616x6490 | 25485 | 20535 | 29535 |
| 20 | 0.8 | 2616x8010 | 31590 | 24990 | 36990 |
| 20 | 1.6 | 2616x8010 | 33080 | 26480 | 38480 |
| 30 | 0.8 | 2616x11050 | 46315 | 34615 | 54415 |
| 30 | 1.6 | 2616x11050 | 48855 | 38955 | 56955 |
| 50 | 0.8 | 3016x12720 | 76995 | 60495 | 90495 |
| 50 | 1.6 | 3016x12720 | 81575 | 65075 | 95075 |
| 100 | 0.8 | 3520x17220 | 150910 | 117910 | 177910 |
| 100 | 1.6 | 3520x17220 | 159105 | 126105 | 186105 |
| 150 | 0.8 | 3720x23240 | 231000 | 181500 | 271500 |
| 150 | 1.6 | 3720x23240 | 243000 | 193500 | 283500 |
Technical Parameters for LCO₂
| Tank Volume(M3) | Work Pressure(Mpa) | Dimension(mm) | Net Weight(KG) | Full Load Weight LCO₂(KG) |
| 3.5 | 2.2 | 2012x4520 | 4130 | 9275 |
| 3.5 | 2.2 | 2012x7135 | 6705 | 16995 |
| 5 | 2.2 | 2512x6470 | 9165 | 24600 |
| 5 | 2.2 | 2512x7990 | 11325 | 31905 |
| 10 | 2.2 | 2512x11030 | 15565 | 46435 |
| 10 | 2.2 | 3016x12720 | 27665 | 79115 |
| 15 | 2.2 | 3016c17220 | 53100 | 156000 |
Reports & Certificates
Glory Gas always deliver tanks with full factory test reports and third-party test reports upon request, such as:
Material Certificates
Welding Documents
NDT Reports(RT/UT/PT/MT)
Pressure & Leak Test Report
Clean Report
Quality Report
And so on.
